Frymaster’s FootPrint® PRO Filtration System is specifically designed to reduce operational expenses by eliminating the need for additional floor and storage space, and to increase the useful life of shortening, while ensuring quality fried products. It is engineered with features that allow added convenience, easier serviceability and allows for using three different filter mediums with one pan.
This unit utilises gravity to drain oil into the filter pan leaving drain lines free of residual oil. The filter process is as easy as:
1. Switch off the fryer.
2. Open drain valve.
3. Start filter pump.
The filter, housed beneath two or more FootPrint-ready gas fryers, is capable of filtering up to six fryers, individually, without filter movement from fryer to fryer. 25 Litres of oil can be filtered in about three minutes, while other fryers in the battery continue cooking.
FootPrint’s automatic, hands-off operation is fast and easy, encouraging frequent filtering, which extends shortening life.
A large cold zone catches crumbs and sediment from the frying area. Open pot design stainless steel frypot and coldzone can be cleaned and wiped down by hand.
OPTIONAL FEATURES
• Computer magic controller
• Castors
• FootPrint PRO® Filtration System - two to six fryers can be batteried to right side of filter
• Automatic basket lifts - Item Code : BLC
STANDARD FEATURES
• Large 3-inch round drain line creates 13% more capacity for oil to drain freely
• Large capacity filter pan design is lightweight for easy removal
• Space saving
• Self contained
• Labour Saving
• Filter pan design has easy-to clean corners
• Filter pan designed on rails to clear floormats
• Ample cleaning space when filter pan is removed
• Stainless crumb tray
• 1/3 H.P. motor
• 1 box of 25 prepackaged applications of Filter Magic© powder
• 1 box of 25 sheets Filter paper
• Front and rear castors
• Clean out rod• Warranty : 12 months
Dimensions:

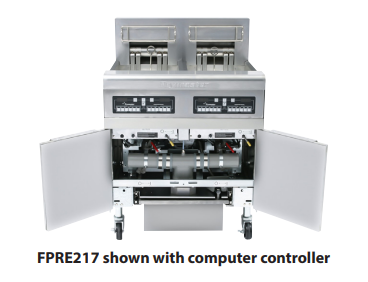

FPRE217SD (2 pot): 793W x 878D x 1168H mm
FPRE317SD (3 pot): 1192W x 878D x 1168H mm
FPRE417SD (4 pot): 1589W x 878D x 1168H mm
Available in:
FPRE117C --1 x 25L (Full Pot)
FPRE217C --2 x 25L (Full Pot)
FPRE317C --3 x 25L (Full Pot)
FPRE417C --4 x 25L (Full Pot)
