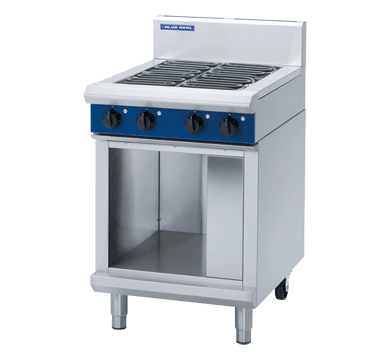

E514D-CB - 600mm Electric Cooktop Cabinet Base
Product Features:
- 4 radiant elements cooktop on cabinet base
- 4 x 2.4kW radiant elements
- Radiant elements with energy regulator controls
- Heavy-duty stainless steel finish
- Heavy-duty reinforced control knobs
- Adjustable feet and 2 additional rollers
- Easy clean, installation and service
- Optional hot plate elements
Cabinet Base (supplied as –CB model)
• Fully modular for match suite finish
• Double skin 0.9mm 304 stainless steel interior and exterior
• Optional GN 1/1 4 position racking kit
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two adjustable feet at front and two rollers at rear
Controls
• Large easy use control knob - heat resistant reinforced
• Easy view control settings on knob
• Radiant elements with energy regulator controls
• Hot Plate elements with energy regulator controls
• 50-320°C thermostat per 300mm griddle section
• Indicator lights for power and heating for each griddle control
• Power indicator lights for each element contro
Cleaning and Servicing
• All models with easy clean stainless steel external finish
• Stainless steel spill tray
• Lift up element and griddle sections
• Access to all parts from front of unit
• Warranty : 12 months (5 year cabinet parts, 2 year wash pump parts and labour)
Dimensions
W: 600mm D: 812mm H: 1085mm
Volume: 0.7m3
Packed Weight: 131kg
Option:
Gastronorm racking kit - 237393
1/1 GN / 4 position / 600mm / 900mm / 1200mm Cabinet Base
Optional Griddle Plate Surfaces -must be specified upon order
PE612R2-600mm x 12mm Griddle plate – ribbed 200mm RH
PE612R3- 600mm x 12mm Griddle plate – ribbed 300mm RH
PE612R4- 600mm x 12mm Griddle plate – ribbed 400mm RH
PE612R6- 600mm x 12mm Griddle plate – ribbed full
